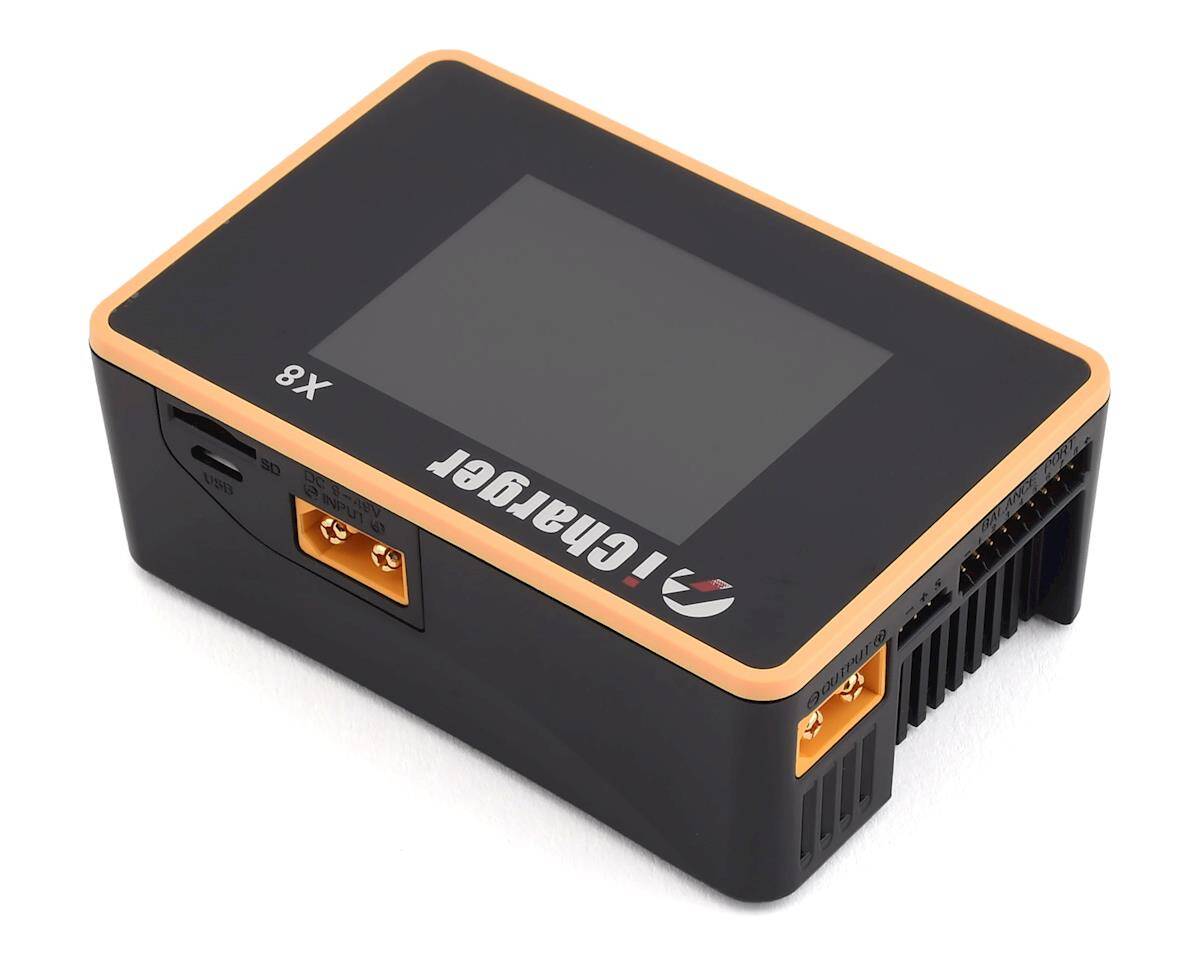

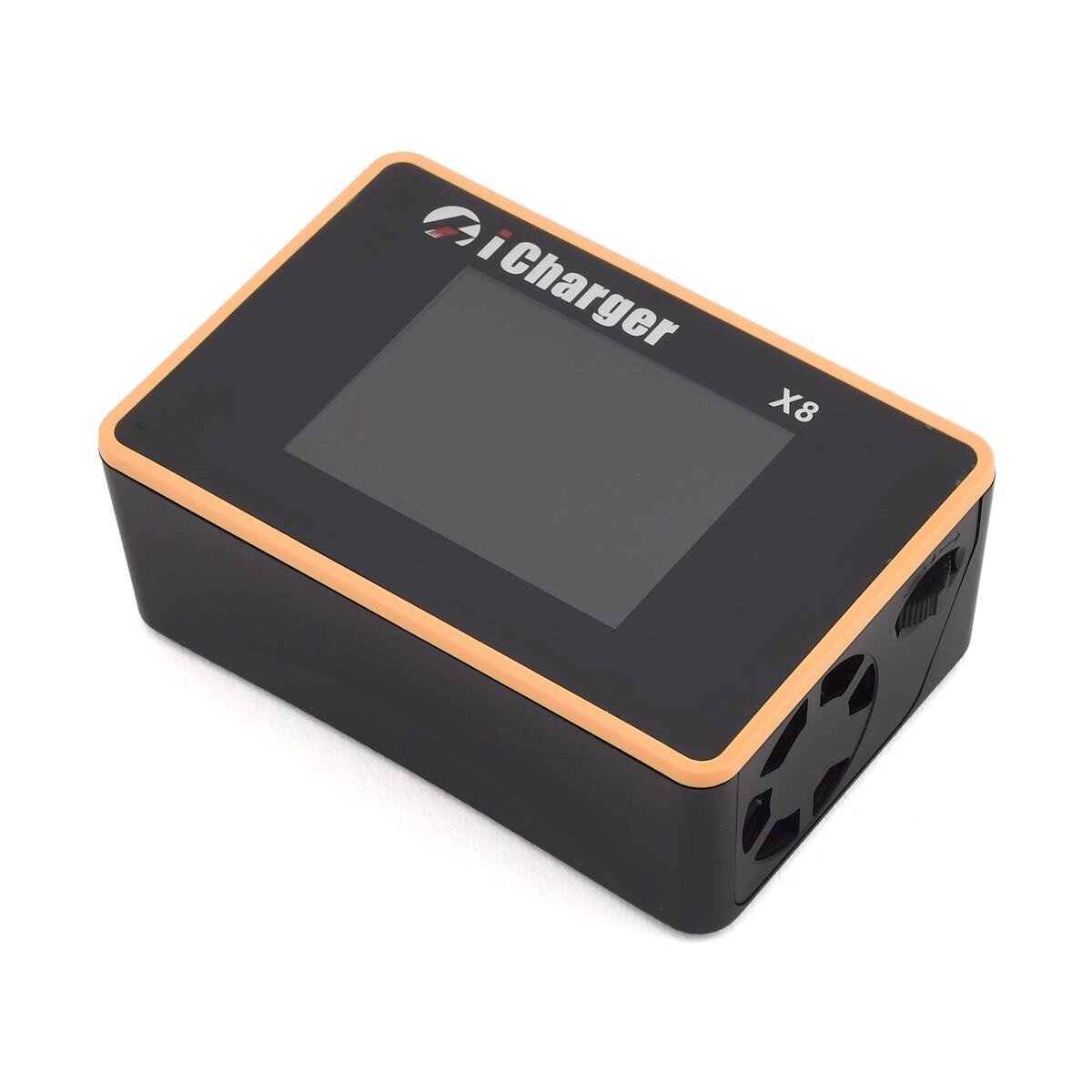

Junsi iCharger X8

Junsi iCharger X8 DC Battery Charger features:

The Junsi iCharger X8 is a powerful and versatile battery charger designed to meet the demands of RC enthusiasts. With advanced synchronous buck-boost DC/DC converter technology, this charger delivers high power, high current, and exceptional performance. Let’s explore its impressive features:

Maximum Charge Power Capacity:

• The X8 boasts a maximum charge power capacity of up to 1100W, ensuring rapid and efficient charging.
• The maximum charge/discharge current of a channel can reach up to 30A.

Battery Compatibility: The X8 supports a wide range of battery types, including:

• LiPo
• Lilo
• LiFe
• LiHV
• LTO
• NiZn
• It also accommodates 1-25s NiMH/NiCd batteries and 1-15s Pb batteries.

Digital-Power Mode: Activate the digital-power mode for enhanced protection:

• Over-current protection
• Over-voltage protection
• Input under-voltage protection
• Input undercurrent protection

Intelligent Fan Control:

• The internal temperature sensor adjusts the fan speed, ensuring efficient cooling during operation.

Temperature Protection:

• If the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced.
• The charger will shut down when the temperature surpasses the Shut-down temperature.

Informative Display: The 2.4″ IPS LCD screen provides rich information, including:

• Current
• Voltage
• Power
• Capacity
• Internal resistance
• Control status
• Time consumption
• Temperature

Multi-Discharge Features: Choose from various discharge modes, including:

• Self-discharge
• Regenerative to input discharge
• Lithium battery extra expanding discharge

Internal Resistance Measurement:

• Assess battery health both offline and online.
• Measure not only the internal resistance of the entire battery pack but also the internal resistance of each cell within the lithium battery.

Protection Features: X8 provides protection against:

• Reversed polarity (input or output)
• Input voltage/current issues
• Battery temperature anomalies
• Charging capacity limits
• Overrun time
• Maximum power thresholds

Software Upgrades:

• Easily upgrade the hardware program via the USB port or SD card.
• X8 also supports the “Junsi Console” software, allowing you to display, plot, and analyze charge and discharge data.

The Junsi iCharger X8 combines performance, safety, and convenience—a reliable companion for your battery management needs!



Specifications:
Display: 2.4 ” IPS LCD (320×240)
Net weight: 200g
Dimension: 97.5×64.5×37 ±0.5mm
Input voltage range: 9—49VDC
Maximum input current limit: <35A
Maximum charge/discharge current: 30A
Maximum charge power capacity: 1100W
Maximum discharge power capacity: 50W
Maximum regenerative discharge power capacity: 1100W
Maximum extra discharge power capacity: 1000W @33.5V/30A
Maximum current drain for balancing: >2.0A
